Stainless Steel Valve
Home < PRODUCTS < Stainless Steel Valve
  • STAINLESS STEEL GLOBE VALVE
  • Production Type
  • Bolted Bonnet, Outside Screwed & Yoke
  • Pressure Rating
  • ASME 150Lbs / 300Lbs / 600Lbs / 900Lbs / 1500Lbs
  • Disc Type
  • Plug (Swivel ) Disc Type
  • Class 150 - FIG NO. S152F & S152W(12 inch*)
NOMINAL

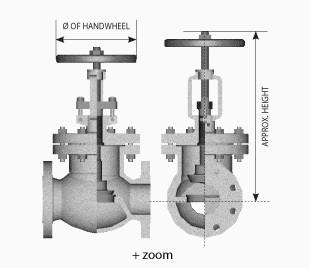

BORE SIZE		 FACE TO FACE BS1873 / ASME B16.34 (RF ENDS)
RF&BW ENDS HEIGHT HANDWHEEL WEIGHT
mm inch mm inch mm inch mm inch kg lbs
13 1/2 108 4’1/4 178 7 120 4’5/7 4 8
19 3/4 118 4’5/8 187 7’1/3 120 4’5/7 4 9
25 1 127 5 216 8’1/2 120 4’5/7 5 12
38 1’1/2 165 6’1/2 251 9’7/8 140 5’1/2 9 21
50 2 203 8 273 10’3/4 180 7 12 27
65 2’1/2 216 8’1/2 314 12’1/3 180 7 22 49
80 3 241 9’1/2 343 13’1/2 200 7’7/8 30 67
100 4 292 11’1/2 368 14’1/2 250 9’5/6 40 88
150 6 406 16 486 19’1/7 300 11’4/5 77 169
200 8 495 19’1/2 565 22’1/4 450 17’5/7 123 271
250 10 622 24’1/2 637 25 450 17’5/7 210 463
300 12 699 27’1/2 695 27’1/3     315 694
350 14 787 31 695 27’1/3     441 972
  • Class 300 - FIG NO. S302F, S302I & S302W(10 inch*)
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 / ASME B16.34 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL WEIGHT
mm inch mm inch mm inch mm inch mm inch kg lbs
13 1/2 152 6 164 6’3/7 185 7’2/7 120 4’5/7 6 14
19 3/4 178 7 191 7’1/2 194 7’2/3 120 4’5/7 8 19
25 1 203 8 216 8’1/2 224 8’5/6 120 4’5/7 11 23
38 1’1/2 229 9 241 9’1/2 267 10’1/2 180 7 19 42
50 2 267 10’1/2 283 11’1/8 329 13 180 7 26 58
65 2’1/2 292 11’1/2 308 12’1/8 354 14 250 9’5/6 33 72
80 3 318 12’1/2 333 13’1/8 383 15 250 9’5/6 53 116
100 4 356 14 372 14’5/8 443 17’4/9 300 11’4/5 68 150
150 6 445 17’1/2 460 18’1/9 567 22’1/3 450 17’5/7 142 313
200 8 559 22 575 22’2/3 615 24’1/5 450 17’5/7 291 641
250 10 622 24’1/2 638 25’1/8 676 26’3/5     410 903
300 12 711 28 727 28’5/8 740 29’1/7     582 1282
  • Class 600 - FIG NO. S602F, S602I & S602W(8 inch*)
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 / ASME B16.34 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL WEIGHT
mm inch mm inch mm inch mm inch mm inch kg lbs
50 2 292 11’1/2 295.3 11’5/8 394 15’1/2 180 7 32 69
65 2’1/2 330 13 333.4 13’1/8 427 16’4/5 200 7’7/8 60 132
80 3 356 14 359 14’1/8 475 18’5/7 300 11’4/5 100 220
100 4 432 17 435 17’1/8 591 23’1/4 450 17’5/7 155 343
150 6 559 22 562 22’1/8 801 31’1/2 560 22 281 620
200 8 661 26 664 26’1/8 1005 39’4/7     532 1174
250 10 787 31 791 31’1/8 1192 47     851 1875
300 12 838 33 841 33’1/8 1490 58’2/3     1194 2632
* The size & lager size shown as Bevel Gear operating type.
