Cryogenic Valve
Home < PRODUCTS < Cryogenic Valve
  • CRYOGENIC GLOBE VALVE
  • Production Type
  • Bolted Bonnet, Outside Screwed & Yoke
  • Pressure Rating
  • ASME 150Lbs / 300Lbs / 600Lbs / 900Lbs / 1500Lbs
  • Disc Type
  • Plug (Swivel ) Disc Type
  • Class 150 - FIG NO. 152F-CR &152W-CR(12 inch*)BS6364/MSS SP-134
NOMINAL

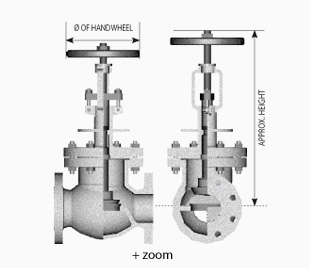

BORE SIZE		 FACE TO FACE BS1873 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL
mm inch mm inch mm inch mm inch mm inch
50 2 203 8 216 8’1/2 750 29’1/2 200 7’7/8
65 2’1/2 216 8’1/2 229 9 790 31’1/9 250 9’5/6
80 3 241 9’1/2 254 10 900 35’3/7 250 9’5/6
100 4 292 11’1/2 305 12 900 35’3/7 300 11’4/5
150 6 406 16 419 16’1/2 990 39 450 17’5/7
200 8 495 19’1/2 508 20 1080 42’1/2 450 17’5/7
250 10 622 24’1/2 635 25 1210 47’2/3 450 17’5/7
300 12 699 27’1/2 711 28 1240 48’5/6
  • Class 300 - FIG NO. 302F-CR, 302I-CR & 302W-CR(10 inch*)BS6364/MSS SP-134
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL
mm inch mm inch mm inch mm inch mm inch
50 2 267 10’1/2 283 11’1/8 800 31’1/2 200 7’7/8
65 2’1/2 292 11’1/2 308 12’1/8 800 31’1/2 250 9’5/6
80 3 318 12’1/2 333 13’1/8 930 36’3/5 250 9’5/6
100 4 356 14 372 14’5/8 980 38’4/7 300 11’4/5
150 6 445 17’1/2 460 18’1/9 1060 41’3/4 450 17’5/7
200 8 559 22 575 22’2/3 1120 44 450 17’5/7
250 10 622 24’1/2 638 25’1/8 1210 47’2/3
300 12 711 28 727 28’5/8 1290 50’4/5
  • Class 600 - FIG NO. 602F-CR, 602I-CR & 602W-CR(8 inch*)BS6364/MSS SP-134
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL
mm inch mm inch mm inch mm inch mm inch
50 2 292 11’1/2 295 11’5/8 850 33’1/2 250 9’5/6
65 2’1/2 330 13 333 13’1/8 930 36’3/5 300 11’4/5
80 3 356 14 359 14’1/8 1060 41’3/4 350 13’7/9
100 4 432 17 435 17’1/8 1060 41’3/4 350 13’7/9
150 6 559 22 562 22’1/8 1200 47’1/4 450 17’5/7
200 8 661 26 664 26’1/8 1250 49’1/5
250 10 787 31 791 31’1/8 1380 54’1/3
300 12 838 33 841 33’1/8 1420 56
  • Class 900 - FIG NO. 902F-CR, 902I-CR & 902W-CR(6 inch*)BS6364/MSS SP-134
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL
mm inch mm inch mm inch mm inch mm inch
50 2 368 14’1/2 372 14’5/8 850 33’1/2 350 13’7/9
80 3 381 15 384 15’1/8 1060 41’3/4 450 17’5/7
100 4 457 18 460 18’1/8 1060 41’3/4 450 17’5/7
150 6 610 24 613 24’1/8 1230 48’3/7
200 8 737 29 740 29’1/8 1300 51’1/6
250 10 838 33 841 33’1/8 1790 70’1/2
300 12 965 38 968 38’1/8 1870 73’5/8
  • Class 1500 - FIG NO. 1502F-CR, 1502I-CR & 1502W-CR(6 inch*)BS6364/MSS SP-134
NOMINAL
BORE SIZE		 FACE TO FACE BS1873 (RF ENDS)
RF&BW ENDS RTJ ENDS HEIGHT HANDWHEEL
mm inch mm inch mm inch mm inch mm inch
50 2 368 14’1/2 372 14’5/8 910 35’5/6 350 13’7/9
80 3 470 18’1/2 473 18’5/8 1030 40’5/9 450 17’5/7
100 4 546 21’1/2 549 21’5/8 1050 41’1/3 450 17’5/7
150 6 705 27’3/4 711 28 1230 48’3/7
200 8 832 32’3/4 841 33’1/8 1590 62’3/5
* The size & lager size shown as Bevel Gear operating type.
